2.1. The traveltime lookup table¶
This tutorial will cover the basic ideas and definitions underpinning the traveltime lookup table, as well as showing how they can be created.
In order to reduce computational costs during runtime, we pre-compute traveltime lookup tables (LUTs) for each seismic phase and each station in the network to every node in a regularised 3-D grid. This grid spans the volume of interest, herein termed the coalescence volume, within which QuakeMigrate will search for events.
2.1.1. Defining the underlying 3-D grid¶
Before we can create our traveltime lookup table, we have to define the underlying 3-D grid which spans the volume of interest.
2.1.1.1. Coordinate projections¶
First, we choose a pair of coordinate reference systems to represent the input coordinate space (cproj) and the Cartesian grid space (gproj). We do this using pyproj, which provides the Python bindings for the PROJ library. It is important to think about which projection is best suited to your particular study region. More information can be found [in their documentation](https://pyproj4.github.io/pyproj/stable/).
Warning
The default units of Proj are metres! It is strongly advised that you explicitly state which units you wish to use.
We use here the WGS84 reference ellipsoid (used as standard by the Global Positioning System) as our input space and the Lambert Conformal Conic projection to form our Cartesian space. The units of the Cartesian space are specified as kilometres. The values used in the LCC projection are for a study region in Sabah, Borneo.
from pyproj import Proj
cproj = Proj(proj="longlat", ellps="WGS84", datum"=WGS84", no_defs=True)
gproj = Proj(proj="lcc", lon_0=116.75, lat_0=6.25, lat_1=4.0, lat_2=7.5,
datum="WGS84", ellps="WGS84", units="km", no_defs=True)
2.1.1.2. Geographical location and spatial extent¶
In order to geographically situate our lookup table, we choose two reference points in the input coordinate space, herein called the lower-left and upper-right corners (ll_corner and ur_corner, respectively). By default, we work in a depth-positive frame (i.e. positive-down or left-handed coordinate system) and use units of kilometres. It is possible to run QuakeMigrate with distances measured in metres, as long as the user specifies this requirement when defining the grid projection and all inputs (station elevations, grid specification, velocities, etc) are in metres.

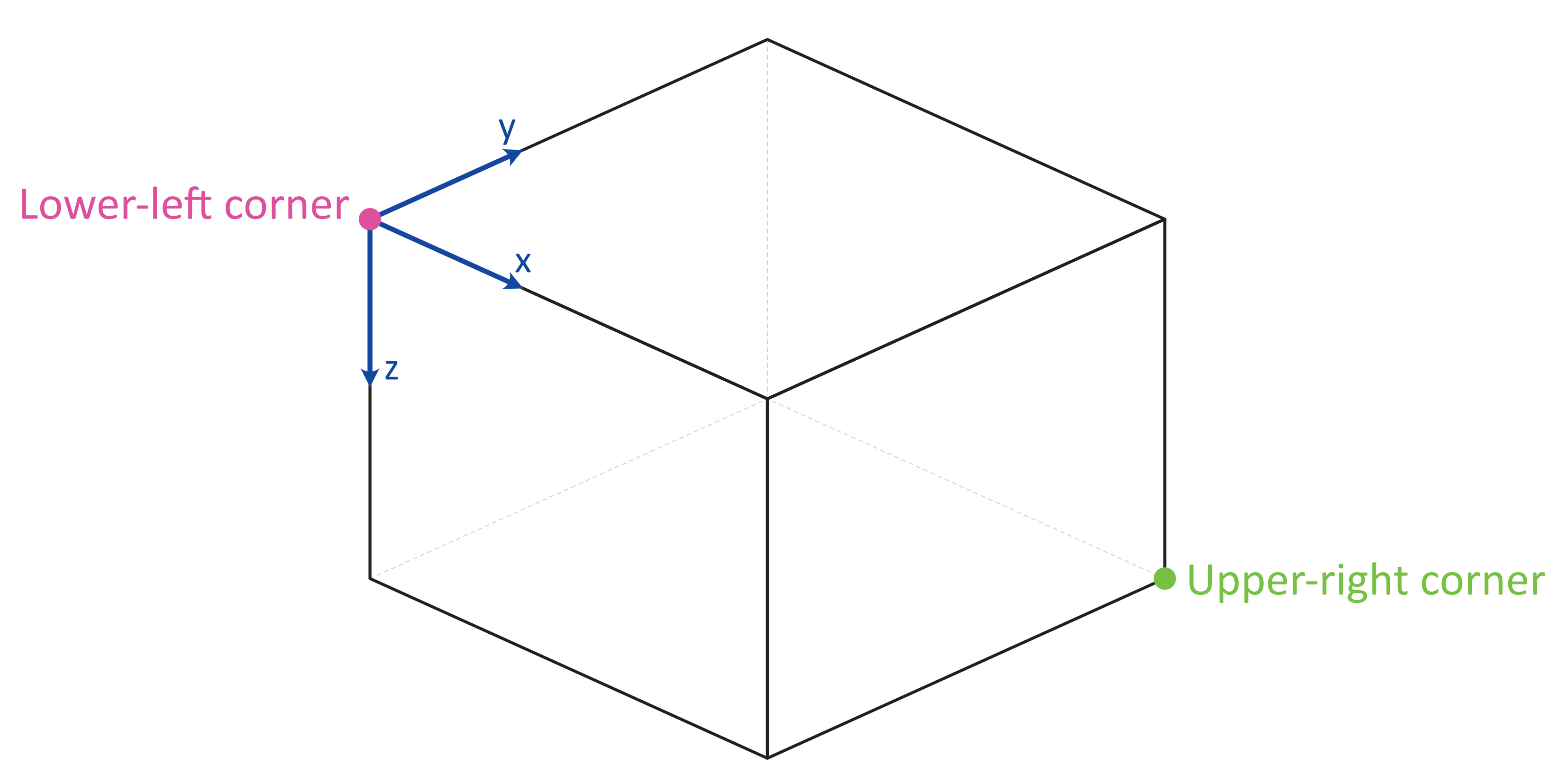

This schematic shows the relative positioning of the two corners:
The final piece of information required to fully define the grid on which we will compute traveltimes is the spacing (in each dimension, x, y, z) between each node in the grid (node_spacing). The LUT class will automatically find the number of nodes required in each dimension to span the specified geographical region. If the node spacing doesn’t fit into the corresponding grid dimension an integer number of times, the location of the upper-right corner is shifted to accommodate an additional node.
Note
The corners (ll_corner and ur_corner) are nodes - hence a grid that is 20 x 20 x 20 km, with 2 km node spacing in each dimension, will have 11 nodes in x, y, and z.
ll_corner = [116.075, 5.573, -1.750]
ur_corner = [117.426, 6.925, 27.750]
node_spacing = [0.5, 0.5, 0.5]
2.1.1.3. Bundling the grid specification¶
The grid specification needs to be bundled into a dictionary to be used as an input for the compute_traveltimes function. We use here the AttribDict from ObsPy, which extends the standard Python dict data structure to also
have .-style access.
grid_spec = AttribDict()
grid_spec.ll_corner = ll_corner
grid_spec.ur_corner = ur_corner
grid_spec.node_spacing = node_spacing
grid_spec.grid_proj = gproj
grid_spec.coord_proj = cproj
2.1.2. Computing traveltimes¶
We have bundled a few methods of computing traveltimes into QuakeMigrate.
In addition to the grid specification, we need to provide a list of stations for which to compute traveltime tables.
from quakemigrate.io import read_stations
stations = read_stations("/path/to/station_file")
The read_stations function is a passthrough for pandas.read_csv, so we can handle any delimiting characters (e.g. by specifying read_stations(“station_file”, delimiter=”,”)). There are four required (case-sensitive) column headers - “Name”, “Longitude”, “Latitude”, “Elevation”.
Note
Station elevations are in the positive-up/right-handed coordinate frame. An elevation of 2 would correspond to 2 (km) above sea level.
The compute_traveltimes function used in the following sections returns a lookup table (a fully-populated instance of the LUT class) which can be used for detect, trigger, and locate.
2.1.2.1. Homogeneous velocity model¶
Simply calculates the straight line traveltimes between stations and points in the grid. It is possible to use stations that are outside the specified span of the grid if desired. For example, if you have a good prior constraint on the possible location of the seismicity you are hoping to detect; for basal icequakes you may limit the LUT grid to span a small range of depths around the ice-bed interface. Any reduction in grid size can greatly reduce the computational cost of running QuakeMigrate, as runtime scales with the number of nodes - so n^3 for an equidimensional lookup table grid of side-length n.
from quakemigrate.lut import compute_traveltimes
compute_traveltimes(grid_spec, stations, method="homogeneous", vp=5., vs=3.,
log=True, save_file=/path/to/save_file)
2.1.2.2. 1-D velocity models¶
1-D velocity models are read in from an (arbitrarily delimited) textfile using quakemigrate.io.read_vmodel. There is only 1 required (case-sensitive) column header - “Depth”, which corresponds to the depths for each block in the velocity model. Each additional column should contain a velocity model that corresponds to a particular seismic phase, with a (case-sensitive) header, e.g. Vp (Note: Uppercase V, lowercase phase code).
Note
The units for velocities should correspond to the units used in specifying the grid projection. km -> km / s; m -> m / s.
Note
Depths are in the positive-down/left-handed coordinate frame. A depth of 5 would correspond to 5 (km) below sea level.
2.1.2.2.1. 1-D fast-marching method¶
The fast-marching method implicitly tracks the evolution of the wavefront. Our current backend is the scikit-fmm package. It is possible to use this package to compute traveltimes to 1-D, 2-D, or 3-D velocity models. Currently we provide a utility function that computes traveltime tables for 1-D velocity models. The format of this velocity model file is specified below. See the scikit-fmm documentation and Rawlinson & Sambridge (2005) for more details.
Note
Traveltime calculation can only be performed between grid nodes: the station location is therefore taken as the closest grid node. Note that for large node spacings this may cause a modest error in the calculated traveltimes.
Note
All stations must be situated within the grid on which traveltimes are to be computed.
from quakemigrate.lut import compute_traveltimes
from quakemigrate.io import read_vmodel
vmod = read_vmodel("/path/to/vmodel_file")
compute_traveltimes(grid_spec, stations, method="1dfmm", vmod=vmod,
log=True, save_file=/path/to/save_file)
2.1.2.2.2. 1-D NonLinLoc-style sweep¶
Uses the Eikonal solver from NonLinLoc under the hood to generate a traveltime grid for a 2-D slice that passes through the station and the point in the grid furthest away from that station. This slice is then “swept” using a bilinear interpolation scheme to produce a 3-D traveltime grid. The format of the input velocity model file is specified below. This also has the benefit of being able to include stations outside of the volume of interest, without having to increase the size of the grid.
Note
Requires the user to install the NonLinLoc software package (available from http://alomax.free.fr/nlloc/)
from quakemigrate.lut import compute_traveltimes
from quakemigrate.io import read_vmodel
vmod = read_vmodel("/path/to/vmodel_file")
compute_traveltimes(grid_spec, stations, method="1dsweep", vmod=vmod,
block_model=True, log=True, save_file=/path/to/save_file)
2.1.2.3. Other formats¶
It is also easy to import traveltime lookup tables generated by other means. We have provided a parser for lookup tables in the NonLinLoc format (read_nlloc()). It is straightforward to adapt this code to read any other traveltime lookup table, so long as it is stored as an array. Create an instance of the LUT class with the correct grid dimensions, then add the (C-ordered) traveltime arrays to the LUT.traveltimes dictionary using:
lut.traveltimes.setdefault(STATION, {}).update(
{PHASE.upper(): traveltime_table})
where STATION and PHASE are station name and seismic phase strings, respectively.
2.1.3. Saving your LUT¶
If you provided a save_file argument to the compute_traveltimes function, the LUT will already be saved. In any case, the lookup table object is returned by the compute_traveltimes function if you wish to explore the object further. We use the pickle library (a Python standard library) to serialise the LUT, which essentially freezes the state of the LUT. If you have added 3rd-party traveltime lookup tables to the LUT, you will need to save using:
lut.save("/path/to/output/lut")
2.1.4. Reading in a saved LUT¶
When running the main stages of QuakeMigrate (detect, trigger, and locate) it is necessary to read in the saved LUT, which can be done as:
from quakemigrate.io import read_lut
lut = read_lut(lut_file="/path/to/lut_file")
